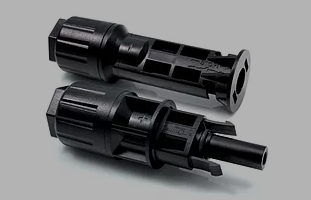

Bizlink PV Connectors
Our connectors are very rugged and can withstand harsh weather as well as tough utilization. They have a robust snap in and lock function that prevent them from disconnecting under load, all in compliance with current safety guide lines. The tools for crimping terminal and assembling connector are available for field installation.
Products :
Features:
With rugged design and features, our TUV/UL 1000V connectors can withstand harsh weather as well as tough utilization. The robust snap in and lock function that prevent them from disconnecting under load. The panel mount option is available with TUV 1000V verison. And, the TUV/UL dual ceritifed model is complied with NEC 2008 regulation, which can only be disconnected with tool.
Specifications:
Technical Data Materials- Housing: PPE
- Housing Color: Black
- Contacts : Copper Alloy
- Loop: Rubber Silicone
- Dimension : Diameter 18mm
- Wire Size Range : 2.5, 4, 6 sq-mm or AWG 10, 12, 14
- Protection Class : IP67 Mated
- Mating Cycles : 50 Cycles
- Rated Current : 30A
- Rated Voltage : TUV 1000V DC /UL: 600 & 1000V DC
- Contact Resistance : 5 m Ohm
- Temperature Range : -40℃ up to +85℃ for TUV and +90℃ for UL
- RoHS Compliant
Note: The specifications are subject to change without notice!
Features:
The newly released 1500V connectors are with highest current rating among connectors used in PV DC application. It supports the cable range up to 16 sq-mm for TUV and 6 AWG for UL. With higher voltage, higher current, and wider cable range, our TUV/UL 1500V/1000V series provide an optimal solution for cusotmers to achieve "Balance of System."
Specifications:
Technical Data Materials- Housing: PPE
- Housing Color: Black
- Contacts : Copper Alloy
- Loop: Silicone Rubber
- F Type- 2.5, 4, 6, 10 sq-mm or AWG 10, 12, 14
- UHC Type- 2.5, 4, 6, 10, 16 sq-mm or AWG 6, 8, 10, 12, 14
- Protection Class : IP68 Mated
- Mating Cycles : 50 Cycles
Wire Size Range:
- F Type-70A Max (TUV) 30A Max (UL)
- UHC Type-90A Max (TUV) 65A Max (UL)
- TUV/UL 1500V & 1000V
- Contact Resistance : TYP 0.3mΩ
Rated Current:
Rated Voltage :
- Temperature Range : -40℃ up to +85℃ for TUV and +90℃ for UL
- RoHS Compliant
Note: The specifications are subject to change without notice!
Features:
With rugged design and features, our branch connectors can withstand harsh weather as well as tough utilization. The robust snap in and lock function that prevent them from disconnecting under load. All of them are certified by UL for 1000V DC application. It is your best choice for parallel connection of strings.
Specifications:
Technical Data Materials- Housing: PPE
- Housing Color: Black
- Contacts : Copper Alloy
- Loop: Rubber Silicone
- Protection Class : IP67 Mated
- Mating Cycles : 50 Cycles
- Rated Current: 30A
- Rated Voltage : 1000V DC
- Contact Resistance : TYP 0.3mΩ
- Temperature Range : -40℃ up to +90℃ for UL
- RoHS Compliant
Note: The specifications are subject to change without notice!
Features:
Sunbolts Fuse Connectors are designed for the overcurrent protection between module strings and devices in PV system. It supports the PV fuse rating 2-15A with UL recognized, IP67 function, also easy swappable for fuse replacement.
Specifications:
Technical Data Materials- Housing: PPE
- Housing Color: Black
- Contacts : Copper Alloy
- MC4 compatible, Sunbolts connector compatible
- Protection Class : IP67
- Rated Current: 15A Max
- Working Temperature : -40 ℃ to +75 ℃ (Suggestion); -40 ℃ to +90 ℃ (Max)
- Contact Resistance : Under 5mΩ
- RoHS Compliant
Note: The specifications are subject to change without notice!
